100T Pressure Four-Cylinder Synchronized Square Stroke Cold Press Machine for Wood and Plastic Doors

100T Pressure Four-Cylinder Synchronized Square Stroke Cold Press Machine for Wood and Plastic Doors

Brand Name: Henrriet
MOQ: 1
Price: Online/offline communication
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001
Max Pressuer:
100T
Work Platen Size:
1300*900mm
Pressure Plate Opening Distance:
1300mm
Oil Cylinder Specifications:
125mm * 4pcs
Power:
7.5kw
Overall Dimensions (Standard Model):
2600*1200*4090mm
Weight (Standard Model-about):
2000kg
Packaging Details:
Film with Foam
Product Description

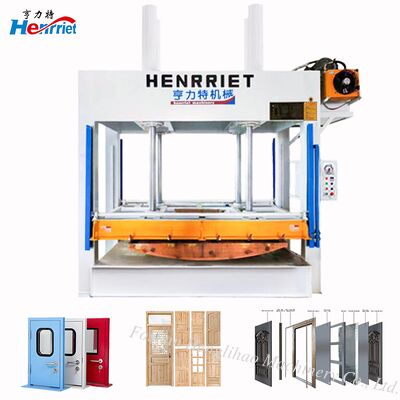

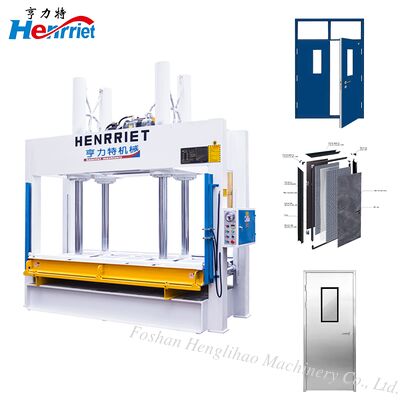

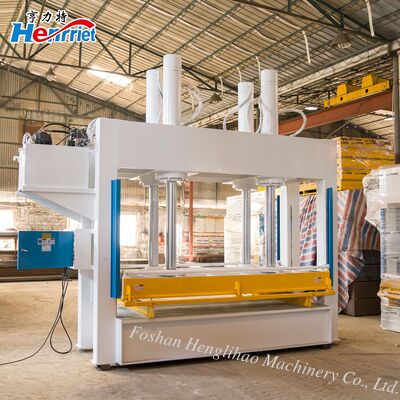

100T Pressure Bending Wood Cold Press Machine
Henrriet's four-cylinder square stroke cold press utilizes synchronized closed-loop drive technology combined with an integrated square stroke structural design as its core technical foundation. This equipment is purpose-engineered for the production of curved furniture panels, plywood, ecological boards, fireproof board veneers, engineered wood products, and a wide range of building decorative panels.
Key Features
  • Superior Production Capacity: Balanced four-cylinder synchronized pressure application with exclusive square stroke guiding structure delivers exceptional force distribution and significantly shortens production cycles.
  • Integrated Safety and Protection: Comprehensive four-layer safety protection system with PLC-based intelligent controls, emergency stops, overload protection, and automatic fault alarms.
  • Wide-Ranging Application Versatility: Ideal for high-end manufacturing categories and curved wood furniture processing, including bamboo and solid wood doors, and wood-plastic composite door leaves.
  • Easy Maintenance and Technical Support: Modular structural architecture with sealed wear-resistant guide design for straightforward maintenance and long operational lifespan.
Technical Specifications
Max Pressure 100T
Work Platen Size 1300×900mm
Pressure Plate Opening Distance 1300mm
Oil Cylinder Specifications 125mm × 4pcs
Power 7.5kw
Overall Dimensions (Standard Model) 2600×1200×4090mm
Weight (Standard Model) 2000kg
Company Advantages
  • Direct Manufacturing: Two in-house factories ensure better prices and faster delivery with no middlemen markups.
  • Custom Engineering: 30+ senior engineers design machines around your specific production needs, floor space, and budget.
  • Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.
  • Proven Experience: Equipment shipped to 50+ countries with 1000+ custom designs, engineered for long-term heavy-duty use.
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam protection
  • 24-hour customer service hotline with 48-hour response to repair needs
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services
