| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

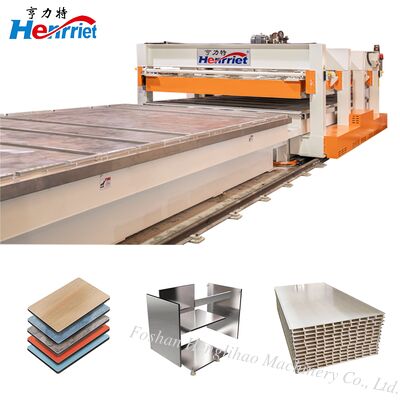

The gantry movable hot press is a combined production unit that deeply integrates the mobile gantry hot press host with the automated conveying system. Its core structure consists of a gantry mobile frame, hot press plate, hydraulic lifting system, automatic conveying frame, and electrical control system. The equipment adopts a unique gantry mobile design, and the gantry frame can freely walk on the track, combined with multiple fixed workstations, to achieve a "one machine, two public workstations" circular operation mode. Unlike traditional fixed hot press machines, this equipment replaces workpiece handling with the movement of a gantry frame. One host can sequentially heat press the plates on multiple workbenches, greatly reducing workpiece handling time and manual intervention.
Feature
1,Superior production capacity
2,Integrated Safety and Protection
3,Wide-Ranging Application Versatility
This gantry style movable hot press machine, with its flexible layout, multi category adaptability, and high-precision hot pressing performance, covers all core application areas and is the core preferred equipment for home manufacturing, building decoration, industrial cleaning, and transportation supporting enterprises to achieve production upgrades.
In the field of home manufacturing, it is perfectly suitable for the hot pressing and solidification production of solid wood furniture, customized cabinets, wardrobe door panels, solid wood composite doors and other products. It can be designed to be movable and flexibly connected to multiple workstations for processing, with precise temperature control and pressure to ensure that the veneer is non carbonized and non adhesive, and the board structure is stable, meeting the strict requirements of high-end home for quality and appearance; At the same time, it can achieve the processing of soft decoration products such as carpet pressing and sofa cushion foaming, and is compatible with the production of all categories of home furnishings in one machine.
Metal and kitchen and bathroom matching field: specially designed for stainless steel cabinet boards, stainless steel countertops, metal decorative panels and other products, with scratch resistant conveying and compression design to protect the metal high gloss/brushed finish. Precise compression ensures that the board and core layer are firmly bonded without hollowing or indentation, perfectly meeting the high standard requirements of the kitchen and bathroom industry for corrosion resistance, wear resistance and appearance.
In the field of door manufacturing, it is suitable for hot pressing veneer and structural composite production of various types of door bodies such as steel wood doors, solid wood doors, paint free doors, and fire doors. The ultra long format pressure plate can achieve one-time pressing of the entire door body, and the heavy-duty pressing process ensures the stability and high flatness of the door body structure, without warping or delamination, meeting the large-scale standardized production needs of the door industry.
4,Easy maintenance and technical support
Specification
|
Pressure method |
Press up and down |
| Number of layers | 1-layer |
| Platen size | 5200mm x 2800mm x 20mm x 3 pieces |
| Platen spacing | 200mm |
| Height of equipment base bracket | 750mm |
| Maximum temperature | 60℃ |
| Maximum pressure | 100T |
| Oil cylinder specification | 9pcs(70mmX100mm) |
| Power | 5.5KW |
| Heating method | Electric heating |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
Product Display

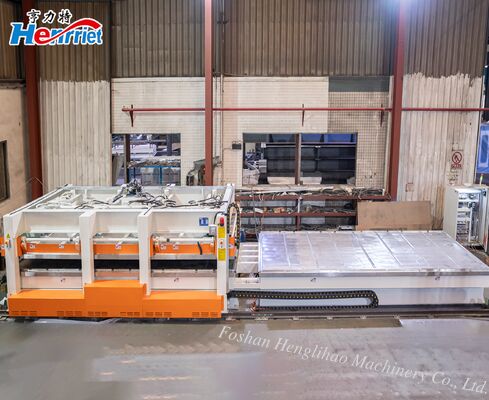

Production workshop actual shooting
