Double-Sided Automatic Feeding Heavy-Duty Hydraulic Cold Press with 3300*1800mm Pressure Plate and 22500kg Load Capacity

Double-Sided Automatic Feeding Heavy-Duty Hydraulic Cold Press with 3300*1800mm Pressure Plate and 22500kg Load Capacity

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum pressure:

17.5MPA

Pressure plate size:

3300*1800mm

Maximum opening distance:

1800mm

Hydraulic cylinder specifications:

6pcs*140*100*1800mm

Specification of track oil cylinder:

10pcs*80*30mm

Maximum Load Capacity Of Chain Track Transportation:

22500kg

Overall dimensions:

3850*5600*4750mm

Weight (approx):

9200kg

Packaging Details:

Film with Foam

Highlight:

heavy-duty hydraulic cold press machine

cold press machine for plywood

hydraulic cold press with roller shaft

Product Description

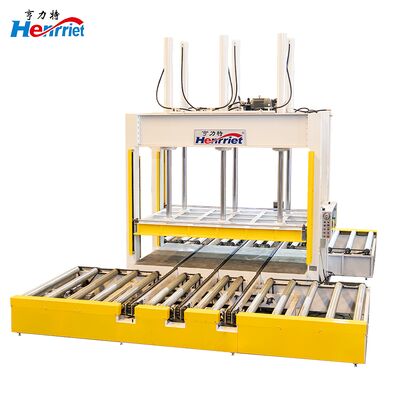

Large Heavy-duty Hydraulic Cold Press with Roller Shaft

Product Overview

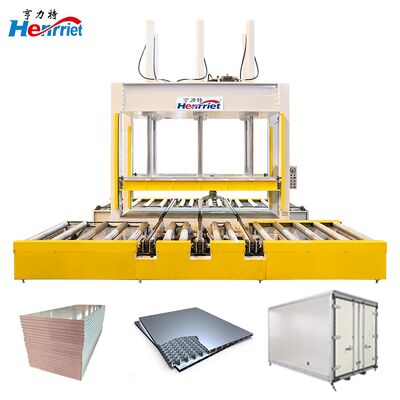

Double-Sided Automatic Feeding Cold Press - 160T Heavy-Duty Hydraulic Cold Press for Aluminum Honeycomb Panels, Plywood Clean Board, Medical Door Panel, and Solid Wood Door Panel applications.

In conventional cold pressing operations for large-format composite panels, material handling remains the primary bottleneck. Heavy aluminum honeycomb panels, stainless steel door assemblies, and rock wool sandwich panels require forklift or multi-person manual handling for loading and unloading—a process that introduces positioning errors, extends cycle times, and increases labor dependency.

Key Features

Enhanced Production Capability

Chain-track conveying system operates through coordinated sequence: track cylinders lift workpiece from loading station, chain conveyor transports into press cavity, and system reverses to discharge finished panel. 22,500 kg chain track load capacity and 52,000 kg cylinder lift capacity accommodate heaviest panel configurations.

Integrated Safety and Protection

Multi-layer closed-loop safety protection system for dusty, long-hour continuous operation in industrial workshops. Addresses mechanical extrusion risks, bumps, crushing injuries, and pressure plate fall hazards during power failure or pipeline failure.

Wide-Ranging Application Versatility

Suitable for heavy-duty aluminum honeycomb panels, stainless steel doors, and rock wool sandwich panels. Maintains pressure uniformity critical for applications with dual requirements for weight reduction and structural strength.

Easy Maintenance and Technical Support

Chain-track conveying system requires regular inspection of chain tension, track cylinder seals, and limit switch functionality. Daily debris clearance maintains smooth conveying operation.

Technical Specifications

Maximum Pressure	160 Ton
Pressure Plate Size	3300*1800mm
Maximum Opening Distance	1800mm
Hydraulic Cylinder Specifications	6pcs140100*1800mm
Specification of Track Oil Cylinder	10pcs8030mm
Power	5.5kw
Maximum Pressure	17.5MPA
Maximum Load Capacity of Chain Track Transportation	22500kg
Overall Dimensions	385056004750mm
Weight (approx)	9200kg

Company Advantages

Two In-House Factories: Better prices, faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions for your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours

Free video training for operators and provision of process guidance manuals

Lifetime technical support and software upgrade services

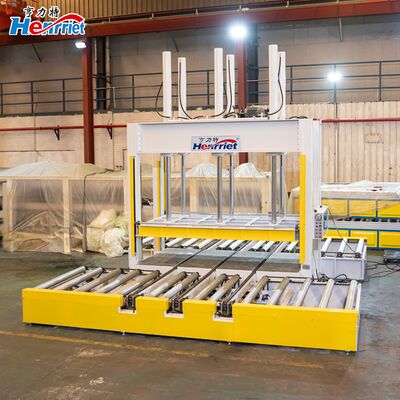

Product Images
